LY-485C Visual Positioning Machine with ±0.05mm Accuracy, 35-45 PCS/Min Capacity, and YAMAHA Robot Arm

Model Number : LY-485C

Lmax : 450mm

Brand Name : LSY

Automation : Automatic

Delivery Time : 15 DAYS

Driver : Step motor

Glue Tank Capacity : 45 L

Cutting Method : Die-cutting with precision blades

Bmin : 120mm

Glue Tank : hot and cold tank separately

Working Speed : 12-25 (pair)/min

Positioning Accuracy : ≤0.1mm

Paper Thickness : 100-350gsm

Use : packaging,Gift,Shoe,Candle,Jewelry

Max Aped : 1400mm/s

Box Width : 65-400mm

Payment Terms : T/T,L/C

Supply Ability : 20 SETS FOR ONE MONTH

Stamping Size : 50mm*150mm (max)

Net Weight : 7800 kg

Contact Now

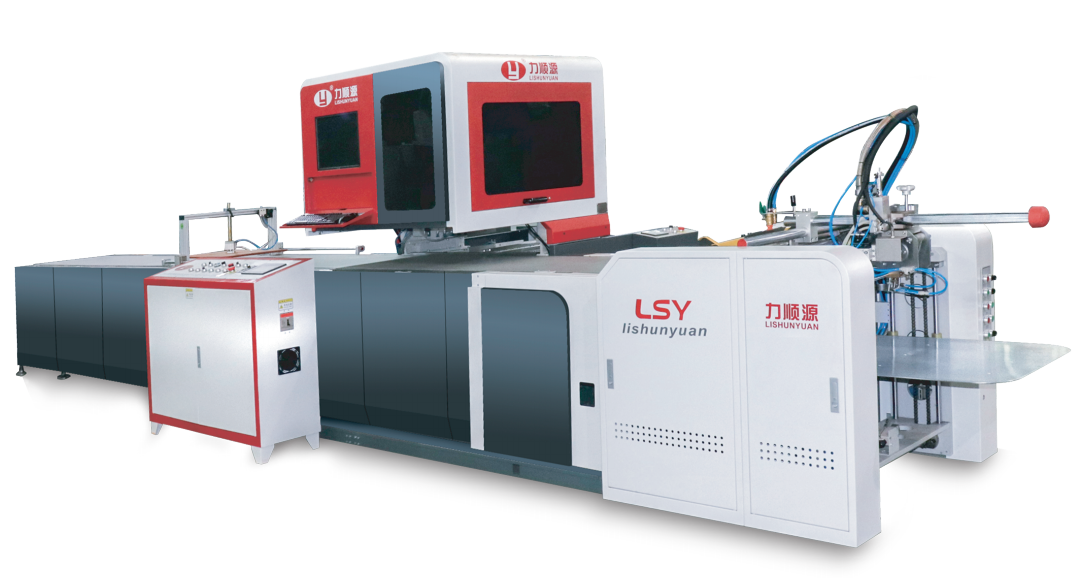

LY-485C Multifunctional Visual positioning machine

LY-485C Visual Positioning Machine with ±0.05mm Accuracy, 35-45 PCS/Min Capacity, and YAMAHA Robot Arm

Facility profile

Independent control by different servo motor for feeding, avert double sheet and incline.
Within 2 sets of high precision cameras and YAMAHA robot arm, Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product, such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box, etc.
Able to production Rigid Box and Hard Cover(Case Maker) at the same time
Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
Easy to setup enhance productivity and increase enterprise profit

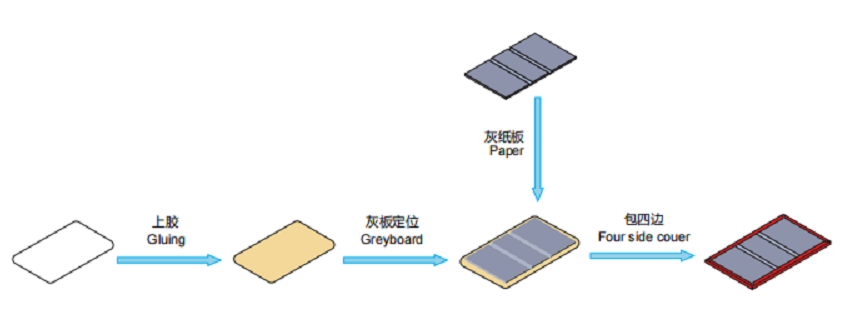

Process flow

LY-485C Visual Positioning Machine with ±0.05mm Accuracy, 35-45 PCS/Min Capacity, and YAMAHA Robot Arm

Facility profile

Independent control by different servo motor for feeding, avert double sheet and incline.
Within 2 sets of high precision cameras and YAMAHA robot arm, Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product, such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box, etc.
Able to production Rigid Box and Hard Cover(Case Maker) at the same time
Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
Easy to setup enhance productivity and increase enterprise profit

Details

LY-485C Visual Positioning Machine with ±0.05mm Accuracy, 35-45 PCS/Min Capacity, and YAMAHA Robot Arm

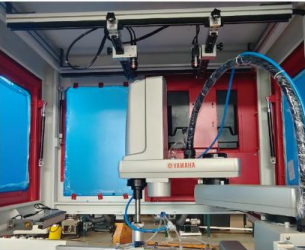

High precision robot suction box, double camera vision positioning accuracy ±0.05mm;

Split board positioning function,able to position 1-6pieces board gap of board 0.5mm+,the narrowest2.5mm;

Pull-down positioning function can be applied to,such as case lining,scratch proof;gray board deformation,direct push is no smooth;special process of gray board surface,scratch proof,peeling,etc.

Technical Parameters

Parameter	Value
Model:	LY-485C
paper size(L*W)	L:180-880mm W:95-600mm
finished box size(LWH)	L:70-600mm W:60-400mm H:15-120mm
case maker finished box size(L*W)	L:200-850mm W:160-450mm
Paper thickness:	80-300g/㎡
Precision:	±0.1mm
air pressure:	0.6-0.8MPa
cardboard thickness:	1-3mm
power supply:	380V/220V/50Hz/3phases
glue tank capacity:	30kg
constant power:	11.5kw
Machine size:	L8000×W2550×H2000mm
Machine weight:	2000kg
Speed:	25-35 sheets/min
