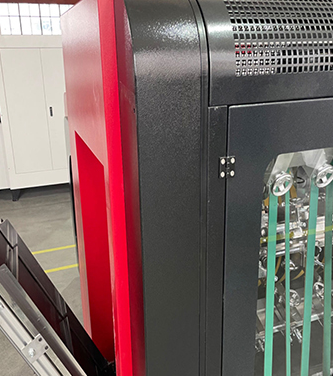

LY-900KC Automatic Grooving Machine
Automatic grooving machine is used for cutting V groove into cardboard,chipboard, rigid board, corrugated board, paperboard , MDF , etc.It has high notching accuracy, dustless, little noise, highly effective, energy conservation, environmental protection. Help you to solve the package grooving problem.
Widely used in gift box,phone box,shoe box,chocolate box, jewellery box, cosmetic box, tea box , wine box, sweet box, candle box , rigid box , etc.
Advantages:
- Dedicated conveyor belt for deliver the waste material out of the machine automatically, save labor, improve output.
- Equipped with special automatic blade sharpener.
- Equipped with 12 sets of grooving knife , each knife head can be adjustment independently , so as to adjust the grooving angle easily.
- Two crossbeams can be assembled with 3 rows of grooving knives, one of crossbeams can be hung up and down knives, three rows of knives working at the same time, there is no requirement for grooving spacing.
- According to different material to choose the corresponding Auto edge Self-aligning device, it can be wear-resistant rubber wheels type, tank wheel type , thick beads type , to ensure the stability of edge correction, and also improve the accuracy and security greatly, easy to operate.
- The grooving accuracy can be up to ± 0.05mm when it work with thin paper.
Details:
|
|
 |
 |
| Single-sided edge automatic correction. |
Crossbeam made in cast iron, 2 crossbeam with 3 row of grooving knives.
|

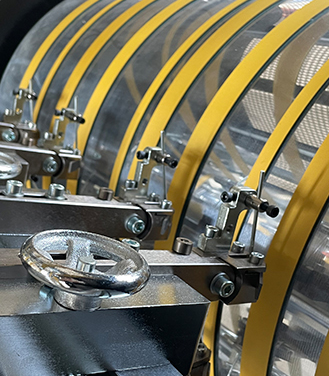

Independent adjustment of each knife head.
|
|
|
 |
 |
| Automatic waste delivery system. |
Grooving knife: Each knife head can be adjusted independently
|
Grooving Sample: Greyboard and thin cardboard
|
Technical parameters:
|
Model
|
LY-900KC |
|
Cardboard width
|
100-850mm |
|
Cardboard length
|
100-500mm |
|
Thickness
|
200GSM-3.5MM |
|
Grooving precision
|
±0.1mm |
|
Speed
|
100-120 PCS/Min
(work piece size 200*200mm)
|
|
Grooving degree
|
90° knife (80-100°), 120° knife (110-130°)
Adjust the Angle of each knife head individually
|
|
Grooving knives
|
12 sets ( 12 knives in 3 rows) |
|
Girder (crossbeam)
|
2 |
|
Groove distance
(between blades from different girder)
|
No limit |
|
Groove distance
(between blades from the same girder)
|
Min. 70mm |
|
Power
|
2.5KW |
|
Way of waste cleaning
|
By dedicated conveyor belt |
|
Weight
|
1580KGS |
|
Dimension
|
2575*1895*1550mm |
