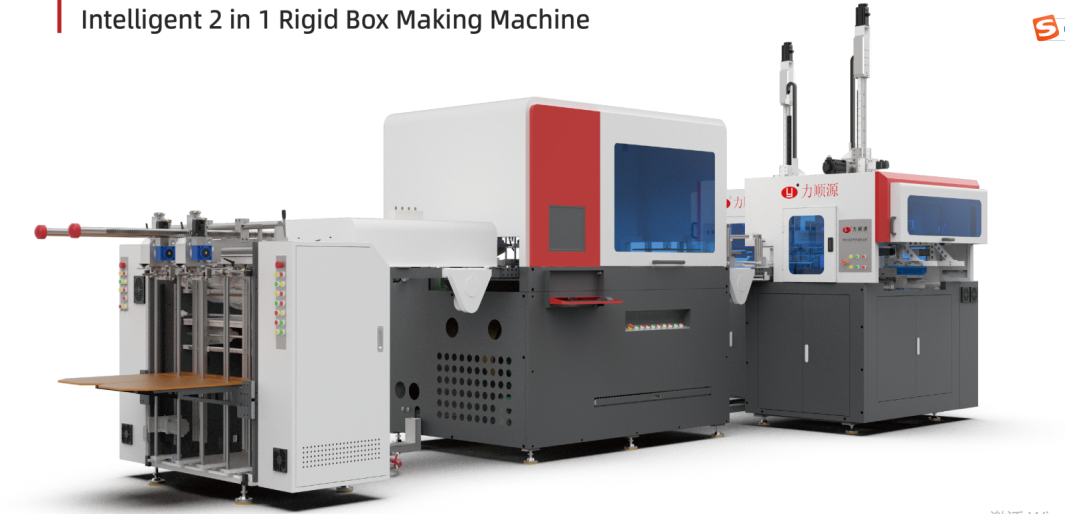

LY-HB3000B Intelligent 2 in 1 High Speed Rigid Box(Making Machine with Bubble Pressing)
Key Features
u Shortest Change-over-time, thereby saving precious machine time
u Uses highly accurate Visual Robot arm positioning with German multiple camera system
u Dual Forming stations for high output
u Includes in-line Bubble pressing module
u Production speed up to 60 pcs/min for do one size production
u Positioning accuracy ±0.05mm
u Change-over-time (job transfer time) in 40 Minutes
u Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Excel cut consists of following sections:
|
Feeder
|
|
•Feeder is controlled by a servo motor.
•Paper-feed-in overturn function.
•Big diameter pneumatic vacuum control valves.
•The rubber pressure roller for the feeding-in paper.
•Antistatic platform for paper.
•The automatic lifting function for feeding stack.
•Feeding stack auto stop when top paper in position Feeder control by servo motor.
•Independent controlled paper feeding table and independently controlled sheet roller.
•Avoid the inconsistency of the length of the paper between the two sheets.
|
|
Positioning
|
|
1. YAMAHA Robot Arm for spotting the box.
2. Camera with in 10 million Pixel tracing system,positioning accuracy can reach 0.05mm.
3. Cameras with robots arms working XY Spool for positioning.
|
|
Corner pasting
|
|
1. Adopt bottom suction after the box is formed:secure it with a downward-pull suction nozzle, allowing the tray to stable fall onto the conveyor belt.
2. Conveyor belt feeding system simultaneously transports two matching boxes of different sizes to the positioning section.
3. Easy to set up, tape width in 19mm.
|
|
Forming Part (within bubble pressing function, no need bubble pressing machine)
|
|
1. Automatic setting by servo motors, it is compatible with different brands of 950mm-high positioning machines.
2. Dual Station smart wrapper for increased production.
3. With a bubble pressing function, eliminating the need for a separate bubble pressing machine.
4. Virtual cam servo driving system.
5. Alarm device for collision detection.
6. Lift the box by holding the side of the box.
7. Scratch resistant for the paper.
8.The minimum forming dimensions is 45*45*15mm.
The maximum forming dimensions is 550*400*130mm,
multiple to do big size box without corner pasting machine
|
Technical Parameters:
|
Paper size
|
single sheet
|
double sheet
|
|
W :60-800mm
|
W :60-375mm
|
|
L :120-880mm
|
L :120-880mm
|
|
Paper thickness
|
80-350g/m2
|
|
Cardboard thickness
|
1-4mm
|
|
Finished box size
|
L: 65-450mm
|
L :65-450mm
|
|
|
W:65-400mm
|
W :65-400mm
|
|
|
H:15-130mm
|
H :15-130mm
|
|
Paper feeding height
|
800mm
|
|
Precision accuracy
|
±0.05mm
|
|
Max power
|
25KW
|
|
Capacity of production
|
30-35PCS/MIN
|
50-60PCS/MIN
|
|
Glue tank volume
|
50kg
|
|
Ear cross ear folding size
|
7-100mm
|
|
Ear overlapping size
|
120mm
|
|
Air pressure
|
0.6-0.7mpa/min
|
|
Power supply
|
380V/50Hz
|
|
Machine dimension
|
L8500×W4300×H2000mm
|
|
Machine weight
|
7800kg
|
Process flow
